Why flexible carbon fabric could replace platinum in clean fuel

The platinum trap

Platinum splits water into clean fuel with ease, but it costs around $55,000 for just one kilo. Digging up that single kilo also pumps 40 to 50 tonnes of carbon dioxide into the air. To make clean fuel at a global scale, we need affordable green hydrogen catalysts—substances that speed up chemical changes without using scarce, costly metals.

Splitting water to collect fuel involves the HER (hydrogen evolution reaction), a chemical process powered by an electric current. Common metals like iron or nickel often waste too much power driving this step. They also break down quickly in harsh acid or alkali baths.

Weaving a better electrode

Instead of using stiff metal sheets, new research focuses on bendy carbon fabric. Makers build this conductive cloth by baking synthetic threads at white-hot heat until only pure carbon remains. Treating this woven cloth with heat or chemicals opens up its structure, expanding its active surface area from 5–20 m2/g to an impressive 200–600 m2/g.

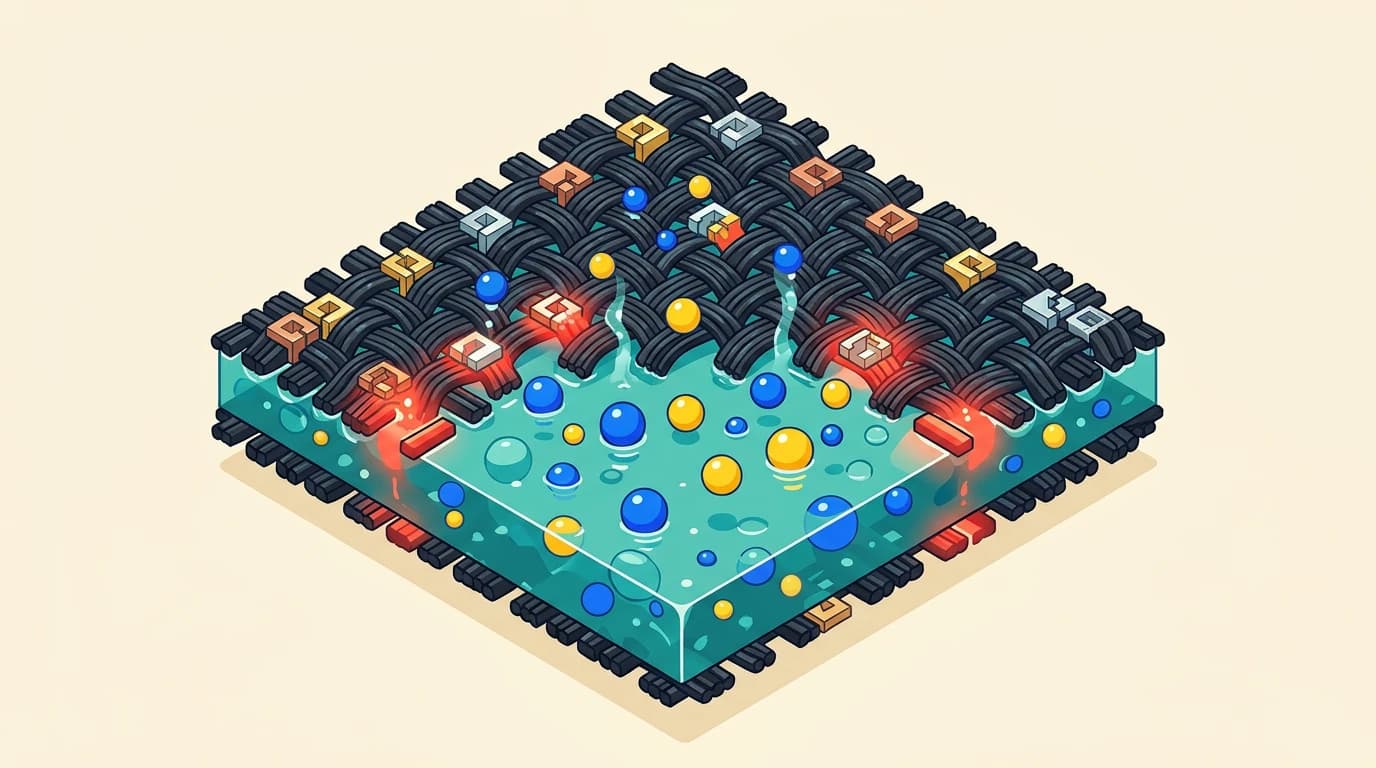

This treatment also changes the fabric from water-repellent to water-loving. Its water contact angle drops from about 120° down to under 30°. Think of the cloth as a breathable sports shirt. Its open weave lets liquid soak right through while letting fresh gas bubbles escape before they can choke the reactive spots.

No glue required

Usually, engineers mix metal specks with plastic glue to paste them onto a base. That glue slows down the flow of electricity and quickly flakes off. By growing mineral crystals right onto the carbon threads, scientists build binder-free plates—devices where active compounds attach directly to the backing without any glue. This tight bond helps electrons move quickly and stops the metals from washing away.

These setups work very well. Tiny cobalt phosphide grains grown on carbon fabric need an overpotential—the extra voltage needed beyond the basic minimum—of only 48 mV at 10 mA/cm2 in acid. This setup ran smoothly for 30 hours. A blend of molybdenum and tungsten phosphide reached -250 mA/cm2 at -0.17 V, showing no wear after 4,000 cycles. Another design with molybdenum sulfide hit -500 mA/cm2 at -0.26 V.

Swapping platinum for common elements like iron, nickel, or cobalt trims raw material costs by over 90 per cent. It also avoids the rust and rot that ruin ordinary metal meshes.

What we still do not know

These fabrics are not quite ready to run world industry. Many cheap metals still need higher extra voltage (50 to 300 mV) than platinum, which operates between 0 and 20 mV. Opening too many tiny pores below 2 nanometres can also backfire by trapping gas bubbles, choking fluid flow, and speeding up carbon breakdown.

Building these fabrics also requires hot, power-hungry steps, like cooking phosphorus at 700 °C. So far, trials have used tiny 1 cm2 lab squares. We do not yet know how electric currents will spread across sheets larger than 100 cm2, or how charges behave at the contact boundary across all acid levels.
